Queue Health Widget

A lightweight, embeddable queue-health widget for your Kinetix dashboard. It does not replace the Laravel Horizon dashboard — it surfaces a few live metrics (throughput, recent & failed jobs, pending depth per queue) right where you want them. When Horizon is installed it reads Horizon's metrics; otherwise it falls back to queue sizes + the failed_jobs table, so it works on any queue driver.

Installation

php

'queue' => [
    'enabled' => env('KINETIX_QUEUE_ENABLED', true),

    // Queues to monitor when Horizon isn't installed (`connection: null` = default).
    'queues' => [
        ['connection' => null, 'queue' => 'default'],
        ['connection' => 'redis', 'queue' => 'emails'],
    ],

    // Frontend poll interval (ms).
    'poll' => env('KINETIX_QUEUE_POLL', 5000),
],

When Horizon is installed, the queues list is ignored — the widget reads Horizon's live workload (every queue, with wait times) instead.

Authorization

The metrics endpoint is gated by the viewKinetixQueue ability. Kinetix defines a default that allows it only in local — define your own to open it up in production:

php

// app/Providers/AppServiceProvider.php
use Illuminate\Support\Facades\Gate;

Gate::define('viewKinetixQueue', fn ($user) => $user->isAdmin());

The component

vue

<script setup lang="ts">
import KinetixQueueStats from '@/components/kinetix/KinetixQueueStats.vue';
</script>

<template>
    <KinetixQueueStats />
</template>

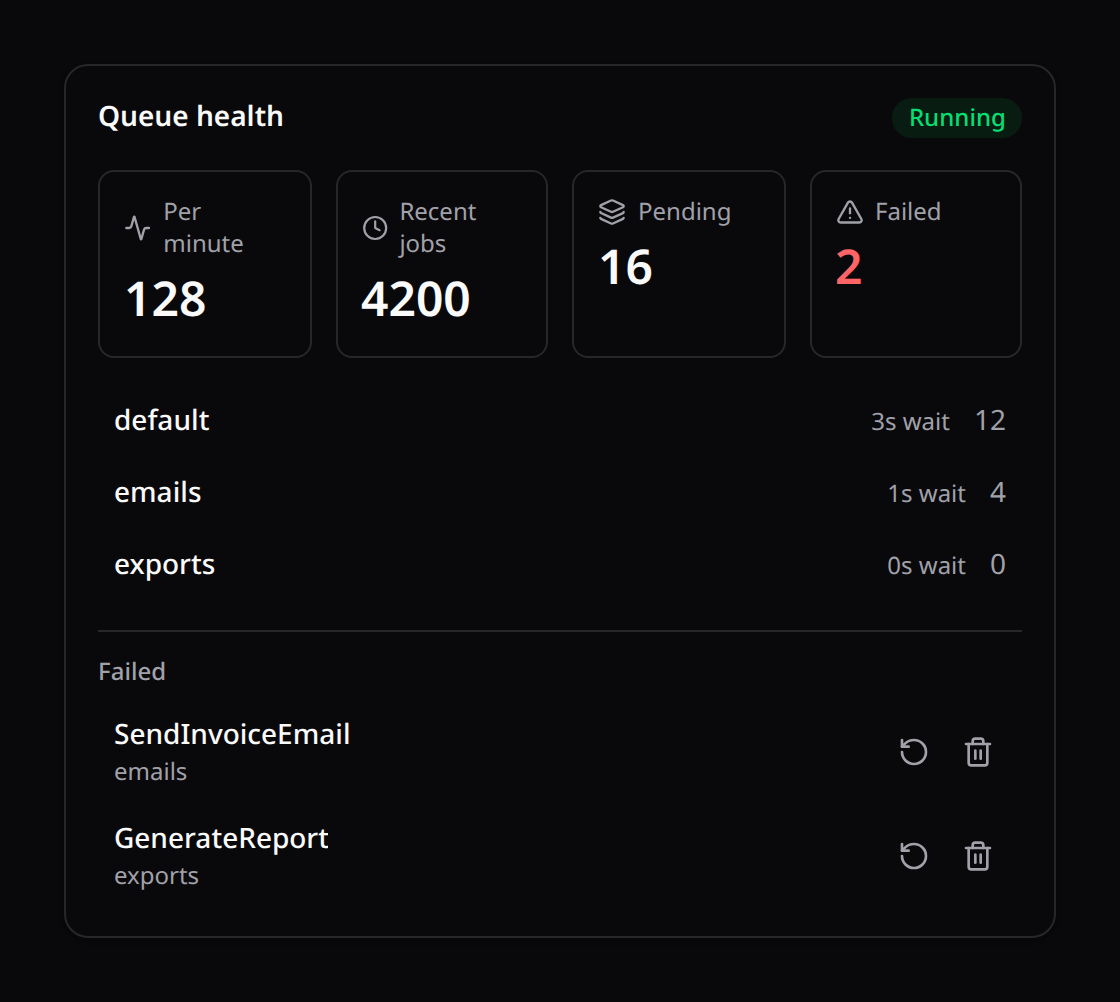

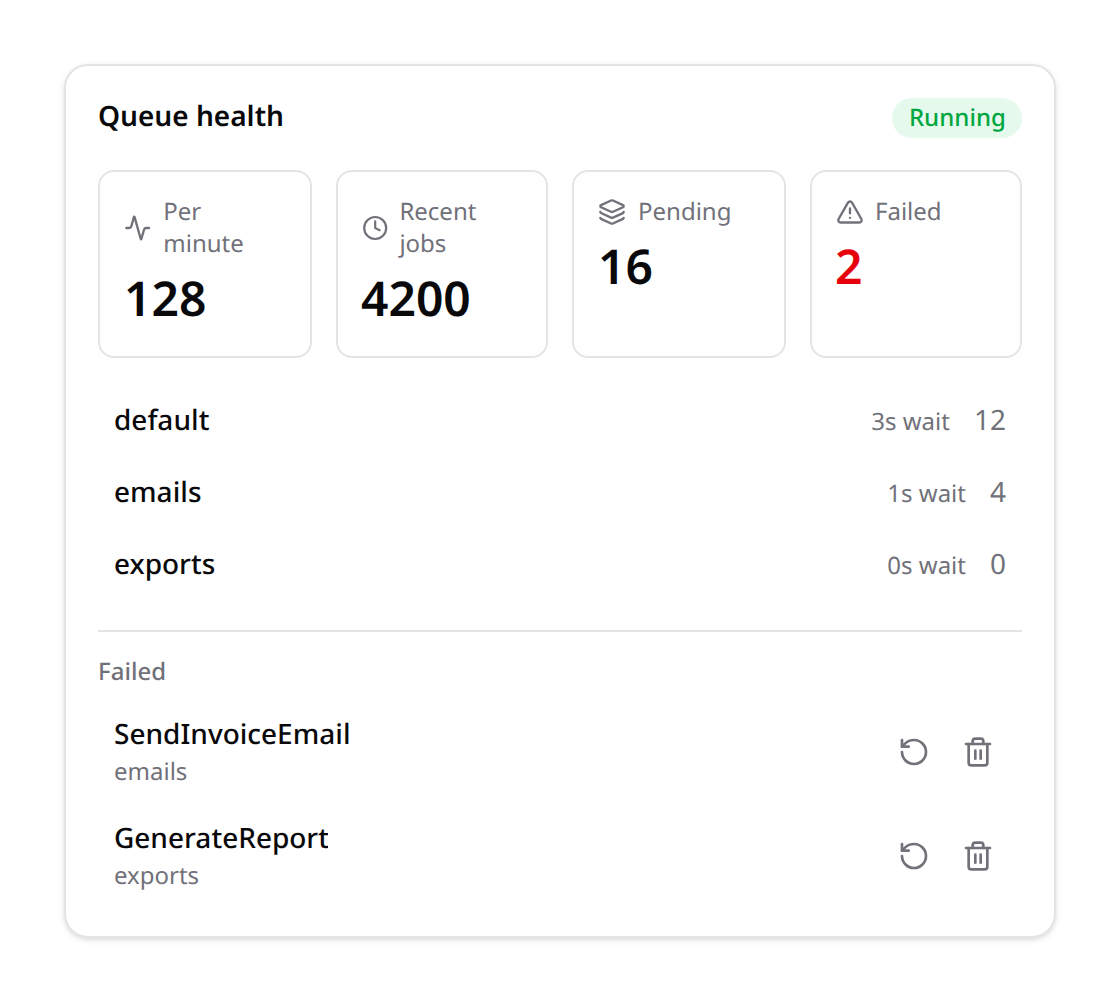

It shows a Horizon status badge (running / paused / inactive, when Horizon is present), stat tiles for per-minute throughput, recent jobs (last hour), pending and failed, then a per-queue list with depth and wait time, and a failed-jobs list with retry / delete actions. It polls the endpoint on the configured interval and stops on unmount.

useKinetixQueue() exposes { snapshot, loading, failed, load, start, stop, retry, forget } for a custom UI. Strings are localized (queue_*, en/es/fr/pt).

Retrying & deleting failed jobs

The widget lists the most recent failed jobs (name + queue). Retry re-queues a job (php artisan queue:retry under the hood) and delete forgets it — both read Laravel's failed-job store, so they work with or without Horizon. The actions hit gated endpoints:

Method	Route	Name
`POST`	`{prefix}/queue/retry`	`kinetix.queue.retry`
`DELETE`	`{prefix}/queue/failed`	`kinetix.queue.forget`

The snapshot

GET {prefix}/queue (gated) returns:

{
  horizon: boolean,                 // is Horizon driving the metrics?
  status: 'running' | 'paused' | 'inactive' | null,
  throughput: number | null,        // jobs/min (Horizon only)
  recentJobs: number | null,        // last hour (Horizon only)
  failedJobs: number,
  failed: { id, connection, queue, name, failedAt }[],   // recent failed jobs
  queues: { name, connection, size, wait }[],
}

throughput, recentJobs and status are null without Horizon; wait is null per queue without it. The widget adapts — tiles that have no data are hidden.

Horizon already ships an excellent, full-featured dashboard. Reproducing it would be redundant. This widget is for the common case: "show me queue health on my own admin dashboard, next to my other Kinetix widgets" — a glanceable summary, with a link to Horizon for the deep dive.
